Why Choose the Acoustic Framed Double Glazed Door?
This Framed Double Glazed Door is engineered to complement contemporary glass partitioning systems without compromising on performance. Its robust aluminium frame, acoustic laminated glazing and integrated drop seal deliver reliable sound reduction while preserving the light, open character of the workspace.
Available in multiple powder-coated finishes and compatible with the Maars hardware collection, the door can be tailored to suit virtually any interior design concept.
Designed for Modern Workspaces
Whether installed in executive offices, meeting rooms or focus areas, the Framed Double Glazed Door provides the ideal balance between aesthetics, durability and acoustic comfort.
It integrates seamlessly with Maars walls, maintaining a consistent architectural appearance throughout the project.
Key Features
- Acoustic performance Rw 39 dB (C = −1 dB; Ctr = −3 dB); STC 39
(Test reference: Peutz A4185-5E-RA-002, 04 August 2025) - Glazing: 44.2 acoustic laminated glass + approx. 30 mm air cavity + 44.2 acoustic laminated glass
- Premium aluminium frame

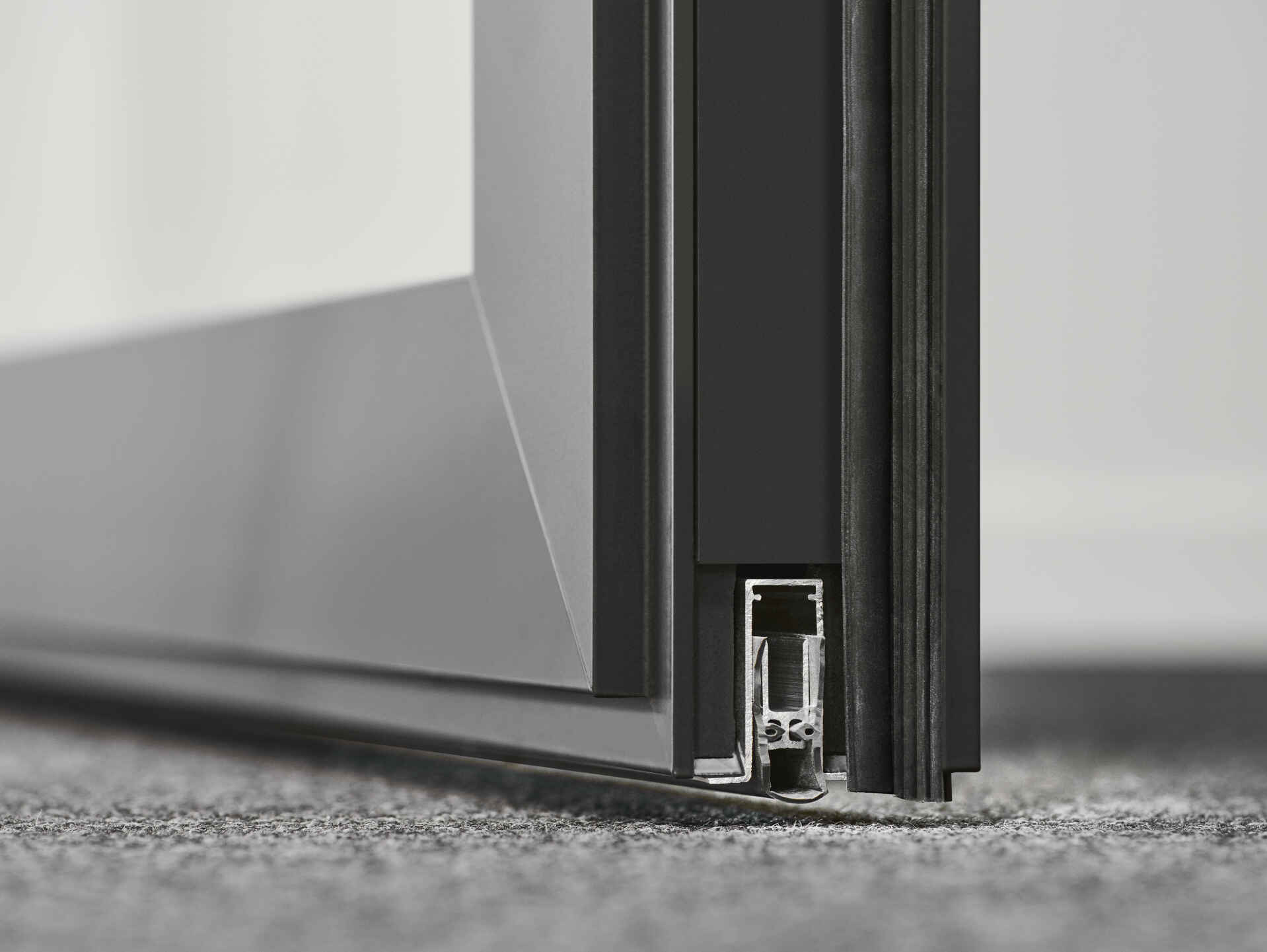

- Built-in Planet FT automatic drop seal

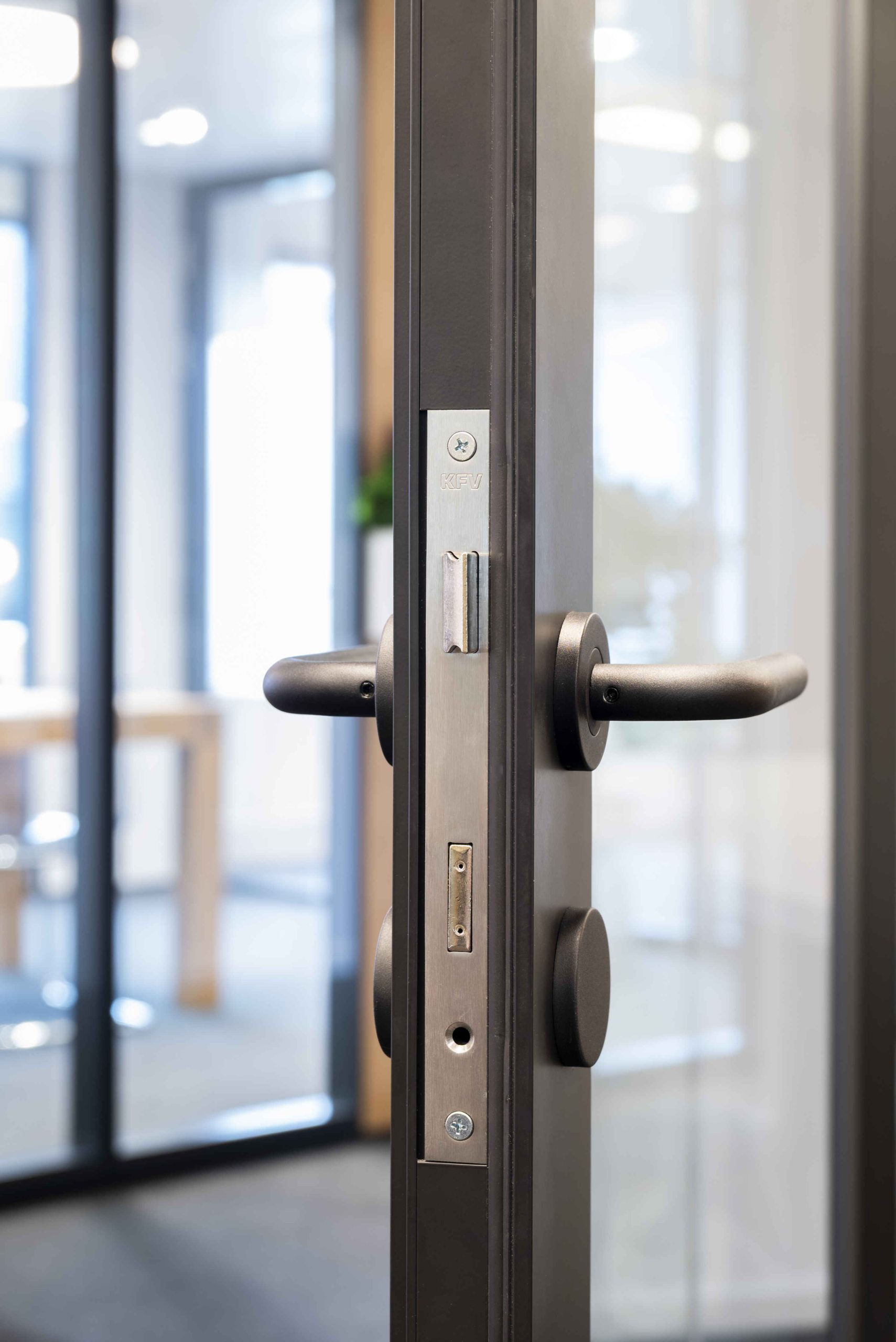

- High-quality locking mechanism
- Three heavy-duty stainless steel or black hinges
- Powder coated aluminium finishes
- Grey or black sealing gaskets
- Optional exposed door closer
- Compatible with Maars hardware collection
Technical Details
| Specification | Details |
|---|---|
| Door Type | Hinged |
| Door Thickness | 54 mm |
| Width | 900–1250 mm |
| Height | 2100–3000 mm |
| Frame | Aluminium (68 mm / 93 mm) |
| Glazing | 44.2 acoustic laminated glass + approx. 30 mm air cavity + 44.2 acoustic laminated glass.
Also available with 6 mm tempered glass + 44.2 laminated glass (non-acoustic). |
| Acoustic Rating | Rw 39 dB (C −1; Ctr −3) / STC 39 |
| Compatible System | Single Horizon, Double Horizon, String 2, Panorama, Lalinea |
*Acoustic performance is based on the tested door configuration. Performance may vary with door dimensions, glazing configuration and installation conditions.
Productspecialists
Richard Camacho
Customer Relations Director/
Regional Sales Manager NorthEast
Jason Herrin
Regional Manager Southeast US
Chris Wenzel
Regional Manager California and Southwest US
Andrew Coakley
Regional Sales Manager Texas US
Kawan Mairuf
Global Export Manager
Joseph George
Regional Sales Manager (Canada)
Bram Nicolaas
European Export Manager
Technical information
| Door thickness | 54 mm |
| STC rating | 39 |
Pick your wall!
- Fully compatible with Maars modular wall systems
Sustainability
- The Framed Double Glazed Door is built with Maars’ circular design philosophy. Using recycled aluminium and modular construction, the doors are made for reuse, reconfiguration and long-term lifecycle value.
Premium Materials
- Every component has been selected for long-term performance.
- High-performance laminated double glazing, Precision aluminium framing, Durable powder-coated finish, Premium locking system, Heavy-duty hinges, Automatic acoustic drop seal etc.
Customisation Options
- The door can be configured with:
- Multiple powder coated colours, Various Maars handle designs, Stainless steel or black hinges, Optional door closer, Panic hardware (on request) etc.
Discover the possibilities
Looking for a high-performance acoustic glass door?
Contact usAt Maars, we are known for our expertise. Not just when it comes to acoustics or sound isolation, but on all aspects related to the development of wall systems and doors. We offer custom-made doors to diverse locations, meeting specific acoustic and fire resistance requirements.
